Powered Metal Coil Uncoiler MT Decoiler Machine
Machine Overview
This variable speed inverter steel strip unwinding machine is designed for stamping production lines, providing stable material feeding for automated manufacturing processes.
Primary Applications
Factories utilize large rolls of metal strips (cold rolled steel, galvanized sheet, stainless steel, aluminum coil, etc.) weighing several tons each. These heavy coils cannot be fed directly into stamping presses, leveling machines, or shearing machines.
This equipment, known as an uncoiler (also called coil decoiler/material reel stand), performs three core functions:
- Firmly clamp and support heavy metal coils
- Release coils smoothly at adjustable constant speeds to feed subsequent processing machines
- Prevent coil deviation, loose unwinding, and collapsing to provide stable raw material for automated production lines
Typical matching equipment: stamping press, NC straightener, metal shearing machine, automatic stamping production line.

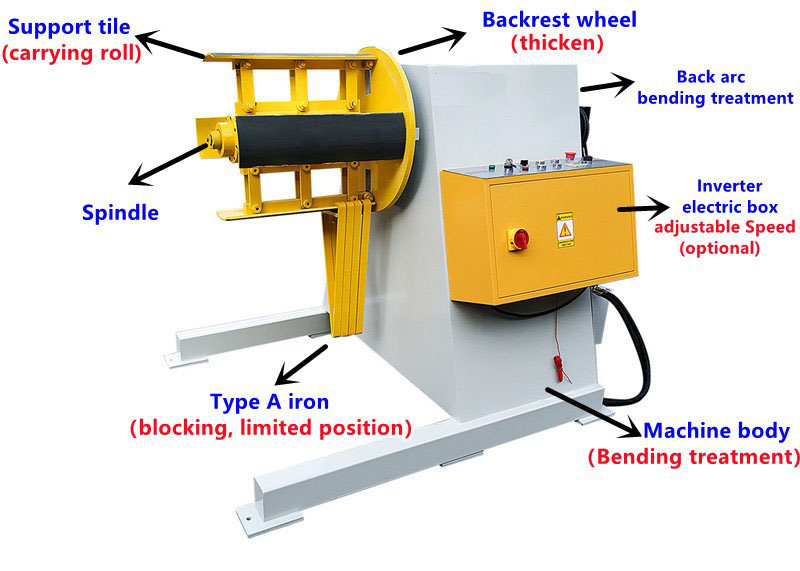

Component Functions
Spindle
The thick black rotating shaft in the center that inserts into the hollow inner hole of metal coils. Internal mechanical/hydraulic structure expands outward to tightly hold the coil inner wall, preventing slipping or shifting during rotation.
Support Tile (Carrying Roll)
Yellow supporting brackets under the spindle that bear the bottom weight of the coil to share load, making coil rotation smoother. Essential for thick and heavy metal coils.
Backrest Wheel (Thicken)
Thickened yellow circular baffle at the rear of the coil that prevents backward sliding and running off track during high-speed unwinding. Made of reinforced thick steel plate for reliable positioning.
Inverter Electric Box
Yellow control cabinet featuring red emergency stop button and variable frequency speed regulation. Controls spindle forward/reverse rotation, start/stop functions, and enables synchronous linkage with leveling machines and stamping presses.
Working Process
- Coil Loading: Use crane to hoist metal coil onto spindle. Expand spindle to lock coil inner hole while support tiles hold coil weight and backrest wheel prevents backward sliding.
- Threading Material: Pull outer end of metal strip, lay it on Type A limiting iron, then feed into next straightener or stamping press.
- Automatic Unwinding: Turn on inverter control box; driving motor rotates spindle to release metal strip forward at constant speed.
- Synchronous Speed Matching: Uncoiler automatically accelerates/decelerates following downstream press operation.
- Safety Emergency Stop: Press red emergency stop button immediately for any strip jamming or failure incidents.
Technical Specifications
| Item |
Specification |
| Width of material |
200mm |
| Thickness of material |
0-1.6mm |
| Speed reducer |
1/60 |
| Motor HP |
1 |
| Coil outside diameter |
1200mm |
| Coil inside diameter |
300/460mm |
| Max material weight |
500kg |
| Machine weight |
320kg |
Application Range & Advantages
Applicable Materials
Cold rolled steel sheet, galvanized steel, stainless steel strip, aluminum strip and other metal coils with thickness ranging from 0.3mm to 10mm. Custom models support load capacity from 1 ton to 10 tons.
Key Advantages
- Full thickened bent frame + reinforced backrest wheel for stable heavy load operation
- Optional variable frequency speed control for automatic stamping assembly lines
- Dual protection of bottom support tiles and Type A limiting iron prevents thin strip creases
- Integrated heavy-duty structure supports 24-hour continuous production
Manufacturer Information
Dongguan Qiaosen Machinery Co., Ltd, established in 2016 with factory located in Jiangsu province. Certified with ISO9001:2008 quality management system. Specialized in production of hydraulic press machines from 10 tons to 2000 tons with 8 series and over 100 types.
Warranty & Service
- One year warranty for complete press machine
- All spare parts available with most components produced in-house
- Electric parts from international renowned brands
- Technical training and consulting via email, phone, or video
- Engineer dispatch for service, installation, or training
- English operation and maintenance manual provided
- Certificate of conformity included with shipment
Frequently Asked Questions
Are you the manufacturer? Can we visit your factory?
We are the manufacturer located in Wuxi city. We welcome factory visits to inspect machine quality on site.
What are your main products and markets?
Our main products include punching machines, metal straightening machines, and servo feeders. We serve markets in Asia, North America, Europe, and Africa.
What are your quality advantages?
Our machines feature imported quality components and undergo rigorous testing by professional quality inspection teams.
How long is your warranty?
We offer 12 months free warranty with lifelong maintenance support.
Brief Summary
This uncoiler acts as the stable "material supply station" for stamping production lines. It firmly holds heavy metal coils and feeds strip material at uniform automatic speed to guarantee consistent processing of downstream machines. All thickened bent structural parts are designed for heavy load and long service life, while the inverter control box enables intelligent matching with automatic production workflows.
